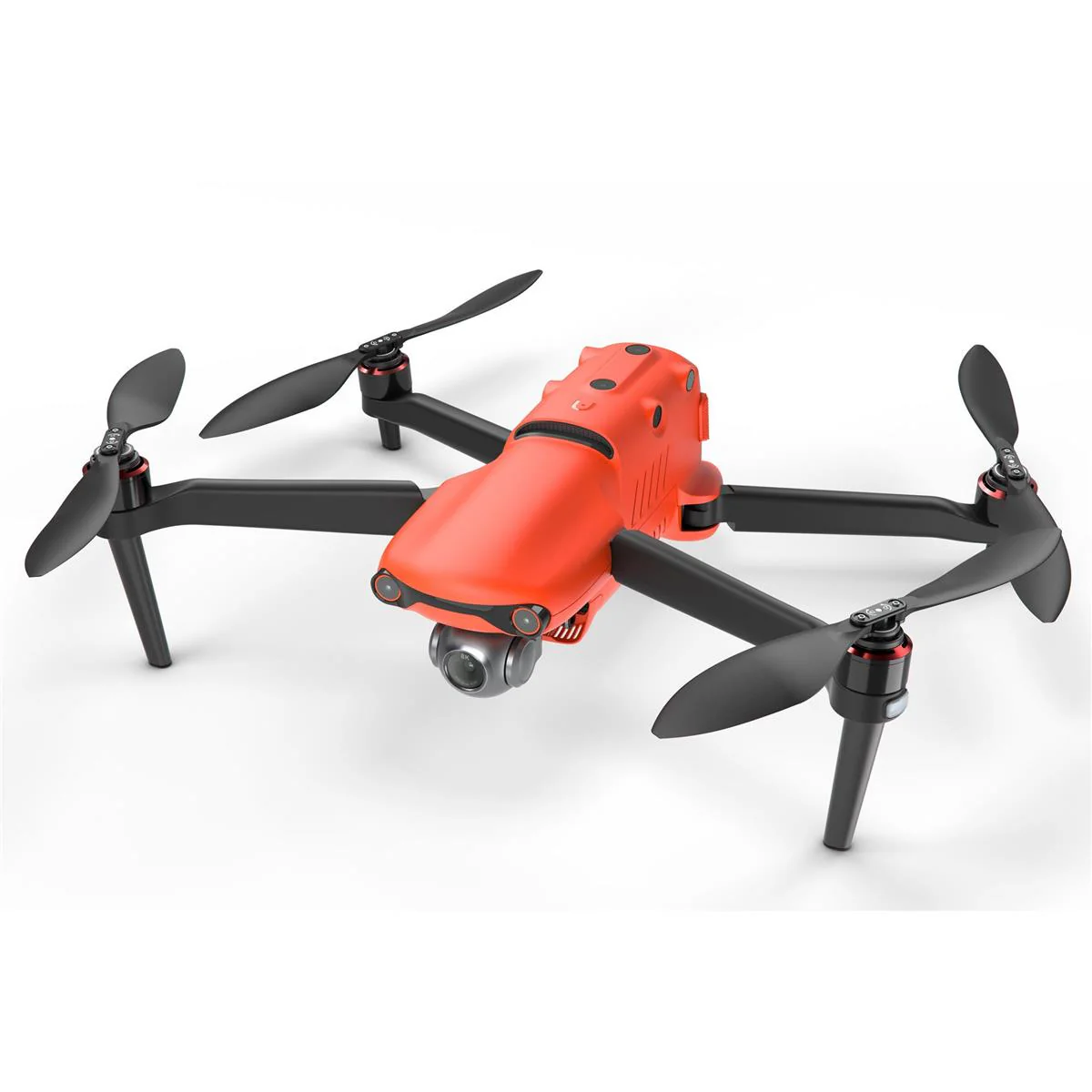

Autel EVO II 8k Fly More Combo

Autel Robotics EVO II 8k drone with its Fly More Combo provides you a total 3 batteries, 5 pairs of propellers, a charging hub, shoulder bag, and landing pad. With the EVO II fly more kit, never again miss those beautiful landscapes!

8K Resolution— 48 Million Pixels, providing sharper images, greater detail, and richer color.

With a 1/2-inch CMOS sensor, EVO II captures impressive 48MP photos. Lossless in-camera zoom up to 4x. Get ready to take your aerial content to the next level. Autel EVO II 8k records in resolutions up to 7680x4320. With 16 times more pixels compared to HD and 4 times as many pixels compared to 4k, 8k video redefine image detail.

EVO II records 8k video up to 25fps, 6k video up to 30fps, 4K video up to 60fps and 2.7k video up to120fps. 10-Bit Log Color supported.

4K, 10-BIT HDR

4K HDR video with 16 Exposure Values (EV) control combines long-, medium- and short-term exposures into a single frame adding dynamic range. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.

Variety of shooting modes

The EVO II 8K Drone supports a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio). and JPEG / DNG(RAW) supported.

Interchangeable Camera design allows you to upgrade 8K Drone to EVO II Pro 6K or Dual at any time

As the EVO II Series gimbals are interchangeable, you can easily swap over the different cameras and gimbals to upgrade the EVO II drone to EVO II Pro or EVO II Dual.

LiveDeck: Stream Anywhere

With Autel Live Deck , the video from the EVO 2 drone can real-time output to any device including computer, tv, tablet, etc, to meet the requirements of scene monitoring and live streaming.

Superior Flight Performance

EVO II - AI Enhanced Dynamic Track

EVO II smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

360° Obstacle Avoidance

EVO 2’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

Viewpoint

Viewpoint allows the user to send the aircraft to a selected destination by touching a point on the screen. Featured with the same waypoints function as EVO to program autonomous flight routes. EVO II can even save multiple waypoint missions making it easy for surveying.

Auto go home & Accurate Landing

EVO 2 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

40 Mins Flight Time & 5.6 Miles HD Transmission

The Autel EVO 2 8K Foldable Drone comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km/5.6Miles away and 35min at a hover.

Autel EVO II Specs

EVO II Camera

Sensor	1/2" CMOS Effective Pixels: 48 MP Performance temperature: -20~60°C
Lens	FOV: 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Shooting Range: 0.5 m to ∞
ISO Range	Video: 100~3200 (Auto) Video: 100~3200 (Manual) Photo: 100~3200 (Auto) Photo: 100~3200 (Manual)
Shutter Speed	Electronic Shutter: 8 ~ 1/8000s
Digital Zoom	1 ~ 8x (Max. 4x lossless zoom)
Still Image Resolution	8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9)
Still Image Format	JPEG / DNG(RAW)
Still Photography Modes	Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Timelapse: JPG: 2s/5s/7s/10s/20s/30s/60s DNG: 5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Video Resolution	8K 7680x4320 p25/p24 6K 5760x3240 p30/p25/p24 4K 3840x2160 p60/p50/p48/p30/p25/p24 2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24 FHD 1920x1080 p120/p60/p50/p48/p30/p25/p24
Video Format	MOV / MP4
Codecs	H.264 / H.265
Max Video Bitrate	120Mbps

Gimbal

Mechanical Range	Pitch: -135~45° Yaw: ±100°
Controllable Range	Pitch: -90~300° Yaw: -90~90°
Stabilization	3-Axis (Tilt, Roll, Pan)
Max Control Speed (Tilt)	300°/s
Angular Vibration Range	±0.005°

Aircraft

Takeoff Weight	2.5 lbs (1150 g)
Dimensions	Folded: 8.98 x 5.24 x 4.33 in (L x W x H) (228 x 133 x 110 mm) Unfolded: 16.69 x 13.94 x 4.33 in (L x W x H) (424 x 354 x 110 mm)
Diagonal Distance	15.63 in (397 mm)
Max Ascent Speed	Standard mode: 11.18 mph (5 m/s) Ludicrous mode: 17.89 mph (8 m/s)
Max Descent Speed	Standard mode: 6.71 mph (3 m/s) Ludicrous mode: 8.94 mph (4 m/s)
Max Speed (near sea level, no wind)	Standard mode: 33.55 mph (15 m/s) Ludicrous mode: 44.73 mph (20 m/s)
Max Service Ceiling Above Sea Level	22,965 ft (7000 m)
Max Flight Time (no wind)	40 minutes
Max Hovering Time (no wind)	35 minutes
Max Flight Distance (no wind)	15.53 miles (25 km)
Max Wind Speed Resistance	39-46 mph (Level 8)
Max Tilt Angle	Standard mode: 28° Ludicrous mode: 33°
Max Angular Velocity	120°/second
Operating Temperature Range	14°F to 104°F (-10°C to 40°C)
Operating Frequency	2.4~2.4835GHz
Transmission Power (EIRP)	2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm
GNSS	GPS/GLONASS/VIO/ATTI
Hovering Accuracy Range	Vertical: ± 0.02m (with visual positioning in normal operation) ± 0.2m (with GPS in normal operation) Horizontal: ± 0.02m (with visual positioning in normal operation) ± 0.5m (with GPS in normal operation)
Internal Storage	8 GB
SD Storage	Standard: 32 GB Max Micro SD Card Supported: 256 GB

Sensing System (Obstacle Avoidance)

Sensing System	Omnidirectional Obstacle Sensing
Forward	Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80°
Backward	Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
Upward	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50°
Downward	Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70°
Sides	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50°
Operating Environment	Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20) Downward: Surface with clear pattern and adequate lighting (lux > 20) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Remote Controller and Transmission

Working Frequency	2.4~2.4835GHz
Max Transmission Distance	FCC: 5.59 miles (9 km) CE: 3.10 miles (5 km)
Real-Time Transmission Quality	720p@30fps / 1080p@30fps
Max Bitrate of Real-time Transmission	40Mbps
Operating Temperature Range	14°F to 104°F (-10°C to 40°C)
Transmission Power (EIRP)	2.4~2.4835GHz FCC/ISED: ≤27dBm SRRC/CE/MIC/RCM: ≤20dBm
Weight	0.82 lbs (370g)
Remote Controller Battery	5000 mAh
Operating Current/Voltage	1.7A @ 3.7V
Charging Temperature Range	32°F to 104°F (0 to 40°C)
Supported Mobile Device Size	Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm)
Supported USB Port Types	Lightning, Micro USB (Type-B), USB-C
Operating Hours	3 hours
OLED Brightness	330 nit

Battery

Capacity	7100 mAh
Battery Type	LiPo 3S
Battery Energy	82 Wh
Voltage	11.55 V
Max Charging Voltage	13.2 V
Net Weight	0.81 lbs (365g)
Charging Temperature Range	41°F to 104°F (5°C to 40°C)
Max Charging Power	92 W

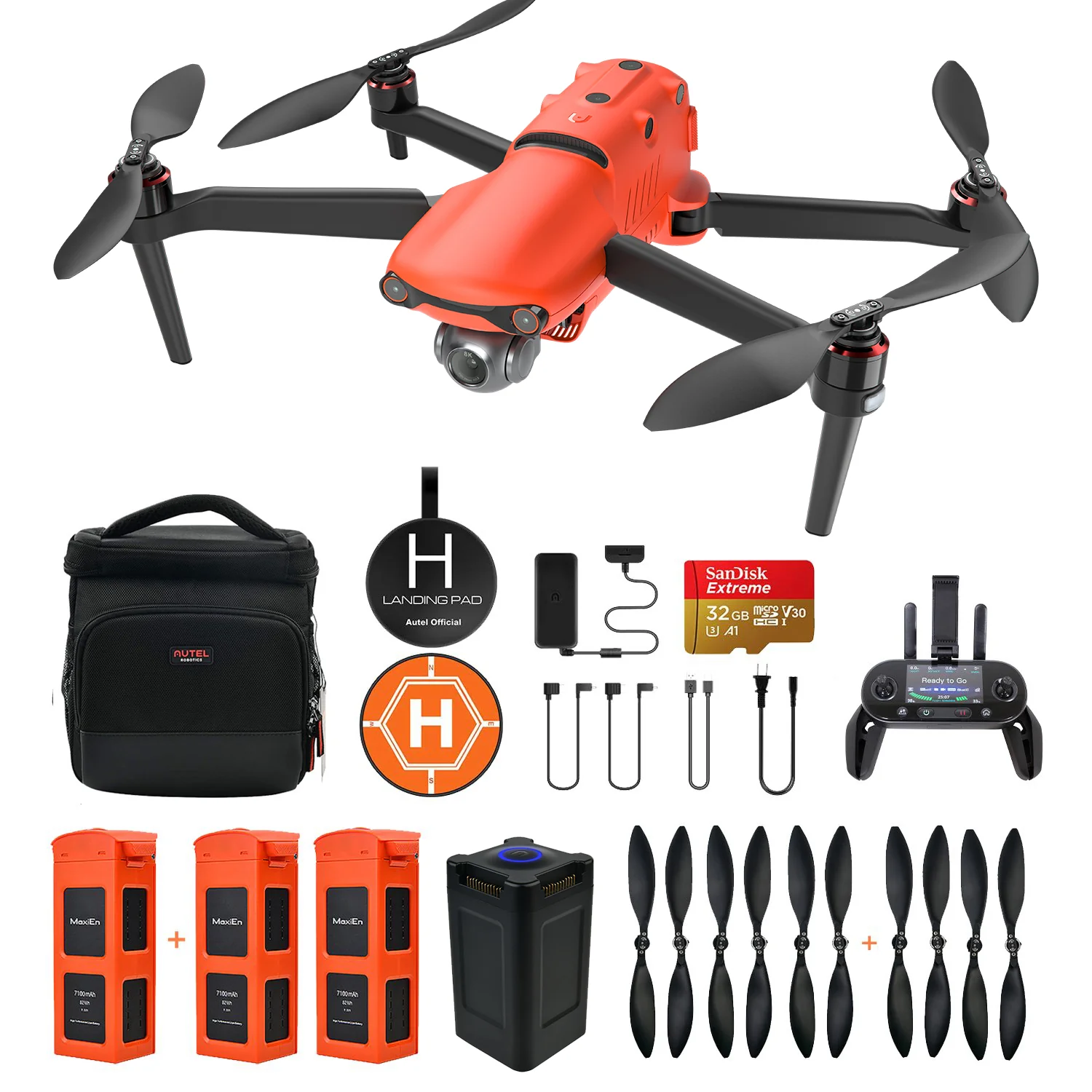

What's Included?

1 * EVO II Pro Drone

5 * Pairs Propellers in Total (2 Pairs Pre-installed)

3 * Batteries in Total (1 Pre-installed)

1 * 32GB U3 Micro SD Card (Pre-installed)

1 * Travel Shoulder Bag

1 * EVO II Charging Hub

1 * Landing Pad

1 * Remote Controller

1 * Battery Charger

1 * RC Charging Cable

1 * RC Connection Cable (Micro Type B & Type C)
