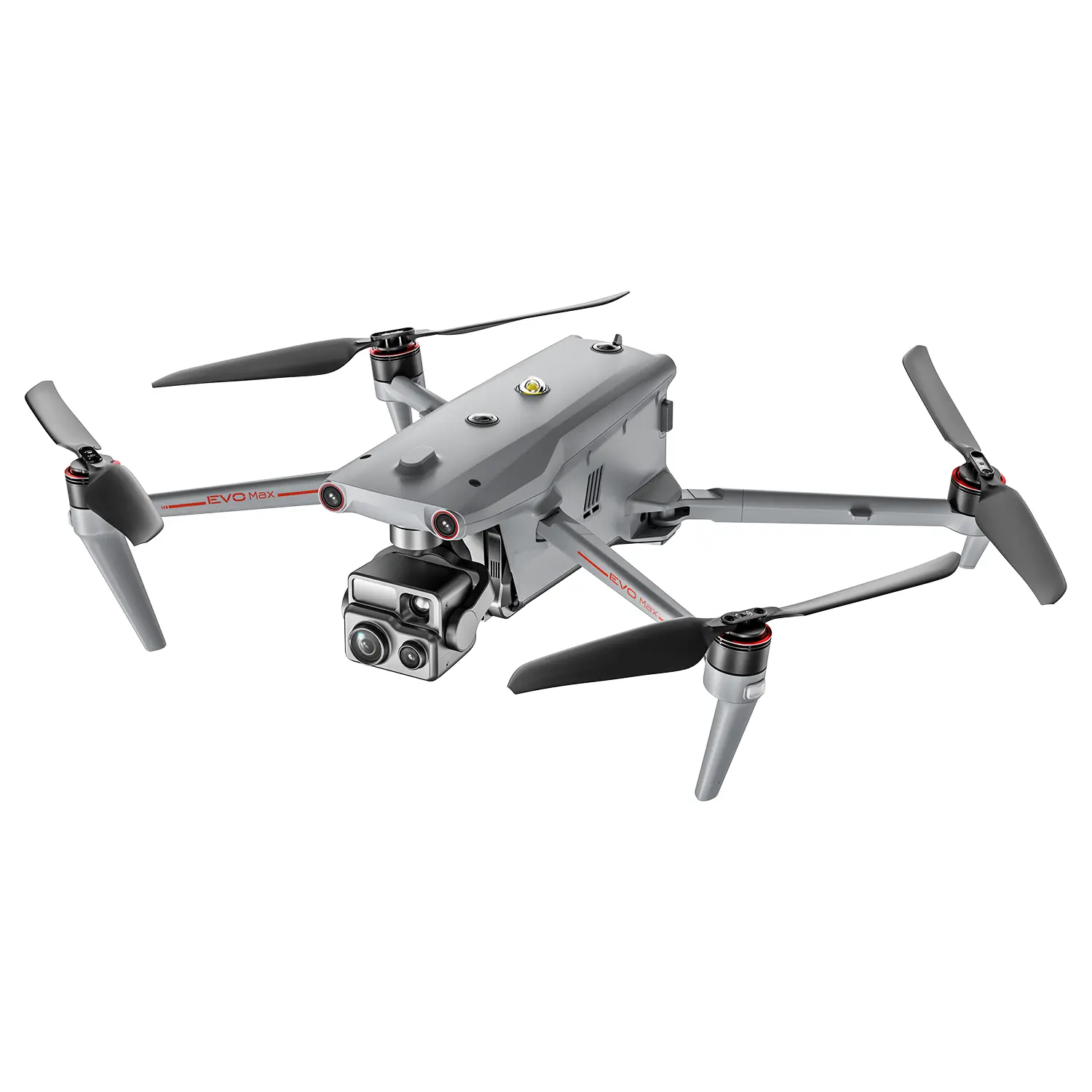

Autel Robotics EVO Max 4T V2

• Current Stock: Logo-Free Version (Same Functions)
• 10X Optical Zoom
• Thermal Camera:640x512 | 16x Digital Zoom
• Wide Camera: 50MP | 1/1.28" CMOS
• Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
• Laser Rangefinder
• Autel SkyLink 3.0 | 12.4 miles Transmission Range
• 720° Obstacle Avoidance
• 42 mins Max Flight Time
• A-Mesh 1.0 | Mesh Networking Technology
• 3D Map Planning | Multiple Mission Types | Data Security
• Multi-channel Projection Screen*
• Autel SDK

[keyfeatures]

• Overview
• Specification
• Packing
• Documents

• Autel EVO Max 4T V2

  Autel EVO Max 4T V2 brings powerful technologies and advanced autonomy to users. EVO Max 4T V2 assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, Autel EVO Max 4T is as portable as it is capable.



  15sTake Off



  8K 10xOptical Zoom



  IP43Weather Rating



  Hot-SwappableBatteries



  GPS-DeniedNavigation



  12.4 MilesTransmission Range



  42 MinutesFlight Time



  720°Obstacle Avoidance

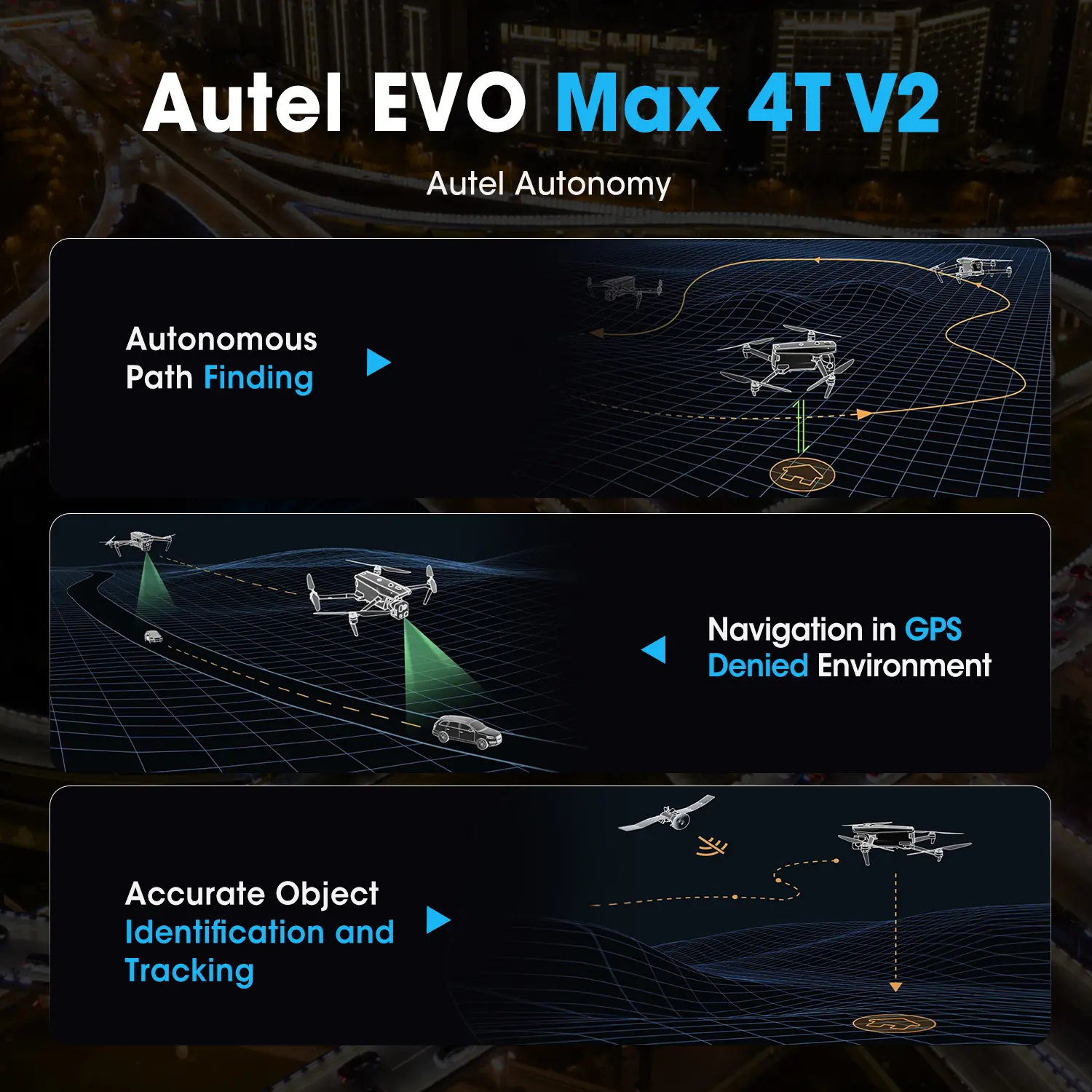

  Autel Autonomy

  EVO Max 4T V2 combines binocular vision systems with millimeter-wave radar technology. The onboard Autel Autonomy Engine detects objects as small as 0.5 inch, reduces blind spots, and supports safer operation in low-light or rainy conditions.



  Binocular Vision System



  Millimeter-Wave Radar


  Autonomous Path Finding

  The Autonomy Engine collects surrounding environmental data and plans intelligent 3D flight paths through mountains, forests, and urban environments. Ideal for public safety, industrial inspection, surveying, and rapid 3D scene reconstruction.



  Navigation in GPS-Denied Environments

  Advanced vision sensors and millimeter-wave radar enable reliable navigation inside buildings, underground facilities, forests, and other environments where GPS signals are unavailable.



  AI Object Identification & Tracking

  Powered by Autel AI, EVO Max 4T V2 automatically detects and tracks people, vehicles, and heat sources, supporting intelligent aerial monitoring, public safety, and law enforcement missions.

  No Blind Spots

  Ultimate Obstacle Avoidance

  EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows Autel EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

  Anti-Jam, Anti-Interference

  EVO Max 4T V2 uses advanced flight control modules and algorithms designed to counter RFI, EMI, and GPS spoofing. This helps the drone fly confidently near power lines, critical infrastructure, and complex electromagnetic environments.



  Weather Rating: IP43

  With an IP43 ingress protection rating, EVO Max 4T V2 is protected against solid objects greater than 1 mm and water spray up to 60 degrees from vertical, supporting reliable operation in challenging field conditions.

  Operating Temperature -4°F to 122°F

  4T V2 Mission Ready Payload

  Autel Max 4T V2 gimbal camera system combines a wide-angle camera, zoom camera, thermal camera, and a laser rangefinder, offering a comprehensive solution for data capture across a variety of environments. This versatile payload is designed to excel in multiple application scenarios, enabling precise decision-making and ensuring optimal performance under diverse conditions.



  Thermal Camera Laser Rangefinder Wide Camera Zoom Camera

  Resolution640 × 512

  Focal Length9.1 mm

  Digital Zoom16×

  Temperature Range-4°F to 1022°F

  Accuracy±2°C or ±2%

  Range5–1200 m

  Accuracy±(1m + D×0.15%)

  Sensor1/1.2" CMOS

  Resolution48 MP

  Equivalent24 mm

  Aperturef/2.8

  DFOV83.4°

  Sensor1/1.2" CMOS

  Resolution48 MP

  Aperturef/2.8–f/4.8

  Optical Zoom10×

  Hybrid Zoom160×

  Video4000×3000 @30fps

  Chase the Heat and Explore the Night

  • • Super Zoom

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring the safety of personnel and flight equipment. This efficient capability empowers applications in energy inspections, emergency rescue, and public safety and security industries.

  • • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up to 64000. Even in moonlight conditions, it can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, ensuring delicate and clear photos in low-light environments.

    • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up to 64000. Even in moonlight conditions, EVO Max 4T can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, ensuring delicate and clear photos in low-light environments.

  • • Superior Infrared

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring the safety of personnel and flight equipment. This efficient capability empowers applications in energy inspections, emergency rescue, and public safety and security industries.

  • • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a maximum ranging distance of up to 1.2 kilometers.

    • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a maximum ranging distance of up to 1.2 kilometers.

  Platform Capability

  EVO Max 4T V2 redefines portability with its robust performance and all-weather design, making it the ideal choice for versatile aerial operations. Autel EVO Max 4T boasts an impressive 42 minutes of maximum flight time, a top horizontal speed of 23 m/s, and an image transmission range of up to 12.4 miles.

  42 mins

  Maximum Flight Time

  23 m/s

  Maximum Horizontal Speed

  12.4 miles

  Image Transmission Range

  27 mph*

  Maximum Wind Resistance



  Hot-Swappable Battery

  Autel EVO Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.

  8070 mAh

  Capacity

  14.88V

  Voltage

  LiPo 4S

  Battery Type

  120Wh

  Energy

  520g

  Net Weight

  Support

  Hot Swap



  A-Mesh Networking Solution

  Autel EVO Max 4T V2 introduces the innovative A-Mesh system, enabling seamless drone-to-drone autonomous communication, connection, and collaboration. Unlike traditional communication chains, the system ensures continuous data relay, even if a single drone fails or disconnects, thanks to its strong anti-interference capabilities.



  Zonal Operations

  EVO Max 4T V2 supports dual-drone dual-control for zonal operations, improving mission efficiency. Drones within the network can also support mutual obstacle avoidance to enhance flight safety.



  Information Sharing

  Two remote controllers in the network can monitor aircraft footage simultaneously. AI target recognition and pinpoint positioning can also be shared between the lead controller and member controller.



  Relay Operations

  In weak-signal or obstructed areas, the aircraft can act as a mobile relay communication node, extending coverage and supporting another member aircraft at a distance.

  Autel SkyLink 3.0

  Autel Max 4T SkyLink 3.0 system is a highly advanced drone communication technology, offering impressive specifications for enhanced flight performance. Here's a summary of its key features:



  12.4 miles

  Image Transmission Distance

  <150 ms

  Ultra-low Latency

  1080p / 60fps

  Real-time Image Quality

  900MHz / 2.4GHz / 5.2GHz / 5.8GHz**

  Adaptive Frequency Bands

  This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

  Autel Enterprise App Platform

  The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize Autel EVO Max 4T V2's mission capability.



  Smart Features



  3D Map Planning

  Plan, create, and execute 3D waypoint missions directly on a 3D map for more precise and efficient flight planning.



  Quick Mission*

  Create temporary quick missions while executing other tasks, and stack multiple sub-missions for greater operational flexibility.



  Mission Reproduction*

  Record camera angles and flight actions from manual or semi-autonomous missions, then replicate the mission for consistent repeatable operations.

  Multiple Mission Types

  The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.



  Automatic Mission Generation*

  Automatically generate mapping routes by defining boundary points or importing KML files for efficient aerial data collection.



  Polygon Mission

  Create polygon flight areas with one click, enabling fast and efficient mapping of complex survey regions.



  Waypoint Missions

  Add customizable waypoints to create flexible flight paths for inspection, patrol, mapping, and automated operations.

  Data Security

  Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.

  Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.



  Autel SDK

  The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.





  Mobile SDK

  Open UX SDK for iOS and Android allows developers to access ready-made interactive interfaces and build customized drone solutions more efficiently.

  Accessories



  Speaker and Spotlight Combo

  Combines long-distance voice broadcasting with a powerful spotlight, helping teams improve night operations, search and rescue, patrol, and on-site communication.

  Learn More



  RTK Module

  Adds centimeter-level positioning accuracy for mapping, surveying, inspection, and other professional missions that require precise flight data.

  Learn More



  Payload Drop System

  Enables controlled payload release for emergency response, field delivery, rescue support, and specialized mission scenarios.

  Learn More



  Multi-Charger

  Charges EVO Max batteries, the smart controller, and other devices efficiently, helping teams prepare faster for longer field operations.

  Learn More

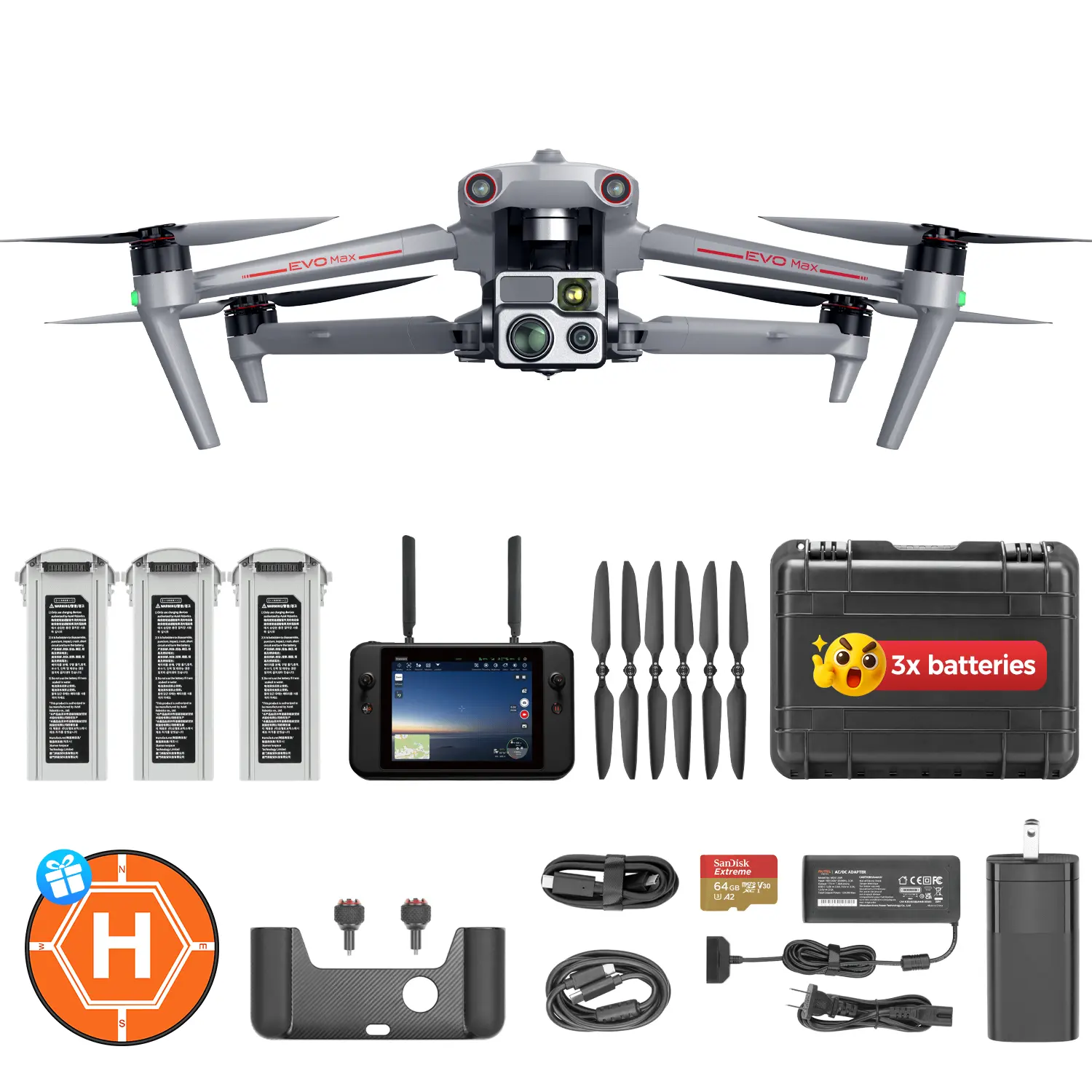

  Autel EVO Max 4T V2 Package List



• Professional Drone Technical Specifications

  Explore detailed specifications for aircraft performance, imaging systems, thermal capabilities, autonomy, radar systems, controller hardware, and more.

  Aircraft Gimbal Zoom Camera Wide Camera Thermal Camera Laser Range Finder Image Transmission Millimeter-wave Radar Visual Sensing Smart Controller ABX41-D Battery

  Weight	1665g (ABX41-D smart battery, Fusion 4T V2 gimbal, and propellers included)
  Dimensions	563×657×147 mm (unfolded, incl. propellers)
  Diagonal Wheelbase	467mm
  Propeller Size	11 inch, 1158
  Propeller Pitch	5.8 inch
  Propeller Material	Nylon + Carbon Fiber
  Propeller Weight	10.3 g
  Maximum Propeller Rotational Speed	7500 RPM
  Max Ascent Speed	8m/s
  Max Descent Speed	6m/s
  Max Horizontal Speed (windless near sea level)	22m/s
  Max Service Ceiling Above Sea Level	4500 meters (use ABX41-D smart battery)
  Max Flight Time	42 minutes * Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference.
  Max Hovering Time (windless)	37 minutes * Test data from lab with windless environment during hovering and only for reference.
  Max Flight Distance	25 km * Test data from lab with windless environment in the speed of 14 m/s during horizonal flight and only for reference.
  Max Wind Resistance	Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s
  IP Rating	IP43
  Max Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
  Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
  Operating Temperature	-20℃ to +50℃ (without load) -20℃ to +40℃ (full load)
  Operating Frequency	2.4G: 2.400–2.476GHz*，2.400–2.4835GHz 5.2G: 5.15-5.25GHz**，5.17-5.25GHz*** 5.8G: 5.725-5.829GHz*，5.725-5.850GHz * Only applies to SRRC regions ** Only applies to FCC, CE (Germany excluded) and UKCA regions *** Only applies to Germany Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Transmitter Power (EIRP)	2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
  Protocol	802.11a/b/g/n/ac/ax

  Gimbal Weight	215 g
  Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
  Controllable Range	-90° to 30°
  Stable system	3-axis mechanical gimbal (pitch, tilt, roll)
  Max Control Speed	Tilt: 100º/s
  Angular Vibration Range	<0.005°

  Sensor	1/2" CMOS, Effective pixels: 48M
  Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
  ISO Range	Auto: ISO100 ~ ISO6400 Manual: ISO100 ~ ISO6400
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Zoom	2.7 - 10x continuous optical zoom, 20x hybrid zoom and 160x digital zoom
  Max Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
  Still Photography Mode	Single
  Video Resolution	4000×3000@30fps
  Max Video Bitrate	60Mbps
  Video Format	MP4
  Video Subtitles	Supported
  Video Encoding	H.264/H.265
  Supported File System	exFAT/FAT32

  Sensor	1/2" CMOS. Effective pixels: 48M
  Lens	DFOV: 83.4° Equivalent focal length: 24 mm Aperture: f/2.8 Focus: 1.5 m ~ ∞
  ISO Range	Auto/Manual: ISO100 ~ ISO6400 Night Mode: ISO100 ~ ISO320000 (auto)
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Zoom	1 – 2.6x digital zoom
  Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
  Still Photography Mode	Single
  Video Resolution	4000×3000@30fps Night Mode: 2400×1800@30fps
  Max Video Bitrate	60Mbps
  Video Format	MP4
  Video Subtitles	Supported
  Video Encoding	H.264/H.265
  Supported File System	exFAT/FAT32

  Thermal Imager	Uncooled VOx Microbolometer
  Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
  Equivalent Digital Zoom Rate	1-16x digital zoom
  Noise Equivalent Temperature Difference	≤50mK@25℃, F#1.0
  Pixel Pitch	12 um
  Spectral Band	8 – 14 um
  Temperature Measurement Method	Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
  Temperature Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
  Temperature Measurement Distance	1-100 m
  Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
  Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
  Photo Size	640×512
  Still Photography Mode	Single
  Photo Format	JPG * the images contain temperature information and are parsed by dedicated SDK and PC tools.
  Video Resolution	640×512@30fps / 640×512@25fps * Due to differences in thermal imaging sensor suppliers, the two specifications are shipped in mixed batches. The exact specification is subject to the actual product purchased.
  Max Video Bitrate	10Mbps
  Video Format	MP4
  Supported File System	exFAT/FAT32

  Wavelength	905 nm
  Laser Safety	Class 1
  Measuring Accuracy	± (1 m + D*×0.15%) * Where D is the distance to a vertical reflecting plane.
  Measuring Range	5 - 1200 m

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
  Max Transmission Distance	FCC: 15 km SRRC/CE: 8 km * Without Interference and Blocking.

  Operating Frequency	60G: 60Ghz~64Ghz 24G: 24.0~24.25GHz Please note: US regulations require that millimeter wave radar only supports 24GHz.
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC)
  Sensing Range	60G millimeter-wave radar: Upward: 0.3 - 20 m Downward: 0.15 - 80 m Forward & Backward: 0.3 - 50 m 24G millimeter-wave radar: Downward: 0.8 - 12 m
  FOV	Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)
  Operating Environment	60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.
  Aircraft Version Limitations*	To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

  Obstacle Sensing Range	Forward: 0.5 ~ 30 m Backward: 0.5 ~ 25 m Sidewards: 0.5 ~ 40 m Upward: 0.5 ~ 40 m Downward: 0.5 - 35 m
  FOV	Forward & Backward: 60°(H), 80°(V) Upward: 180° (sidewards), 120° (forward & backward) Downward: 180° (sidewards), 120° (forward & backward)
  Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment). Downwards: The surface has rich textures, and the surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).

  Type	TFT LCD
  Dimensions	7.9 inches
  Resolution	2048×1536
  Max Brightness	2000 nits
  Refresh Rate	60Hz
  Touch Control	Supported
  Body Material	PC+ABS
  RC Dimensions	269×189×87 mm (antennas folded, sticks and bracket included) 269×189×173 mm (antennas vertical to screen, sticks and bracket included) 269×302×87 mm (antennas unfolded, sticks and bracket included)
  RC Weight	1195 g (smart controller cover excluded) 1365 g (smart controller cover included)
  Operating Temperature	-20℃ to 40℃
  Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
  Angular Vibration Range	IP43* * Long-term use may cause failure.
  Operating System	Based on Android 11
  Pre-installed flight Application	Autel Enterprise
  Application Installation	Supports the installation of third-party Android applications
  Video Performance	Smooth playback of 4K@24fps H.264/H.265 videos
  Internal Storage	128GB* * Does not support microSD card extension.
  GNSS	GPS + Galileo + BDS + GLONASS
  HDMI	Outputs up to 1080P@60fps video
  USB-C	Charging: supports PD 60W fast charging and QC 18W fast charging. Data: USB3.1 Gen2
  USB-A	Power: 5V/2A Data: USB2.0
  Protocol	802.11a/b/g/n/ac
  Operating Frequency	2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz * Only applies to SRRC region Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Battery Replacement	Built-in, not supported
  Battery Type	Li-Po 3S
  Rated Capacity	5800 mAh
  Rated Energy	67 Wh
  Voltage	11.55V
  Charging Time	About 120 minutes* * Charging time depends on the actual remaining power.
  Battery Endurance	Max brightness: 2.5 hours 50% brightness: 4.0 hours

  Battery Weight	530 g
  Battery Dimension	158.4×74.3×50.7 mm
  Operating Temperature	-20℃ to 50℃
  Storage Temperature	-20℃ to +35℃
  Ideal Storage Environment	+22℃ to +28℃, 65±20%RH, 60% battery level
  Battery Type	Li-Po 4S
  Rated Capacity	9248mAh
  Rated Energy	136.5Wh
  Voltage	DC 14.76V
  Charging Voltage Limit	DC 17.0V
  Rated Charging Power	120W
  Max Charging Power	282W
  Battery Charge Temperature	+5℃ to +45℃* * When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging.
  Service life	200 discharge cycles* * If the number of discharge cycles exceeds 200, the battery should be replaced with a new one.

• Autel EVO Max 4T V2 Package List



• Name	Download
  EVO Max 4T V2 Brochure - EN.pdf
  EVO Max 4T V2 Quick Guide.pdf
  EVO Max 4T V2 Battery Safe Operation Guidelines.pdf
  EVO Max 4T V2 Disclaimrand Safety Operation Guidelines .pdf
